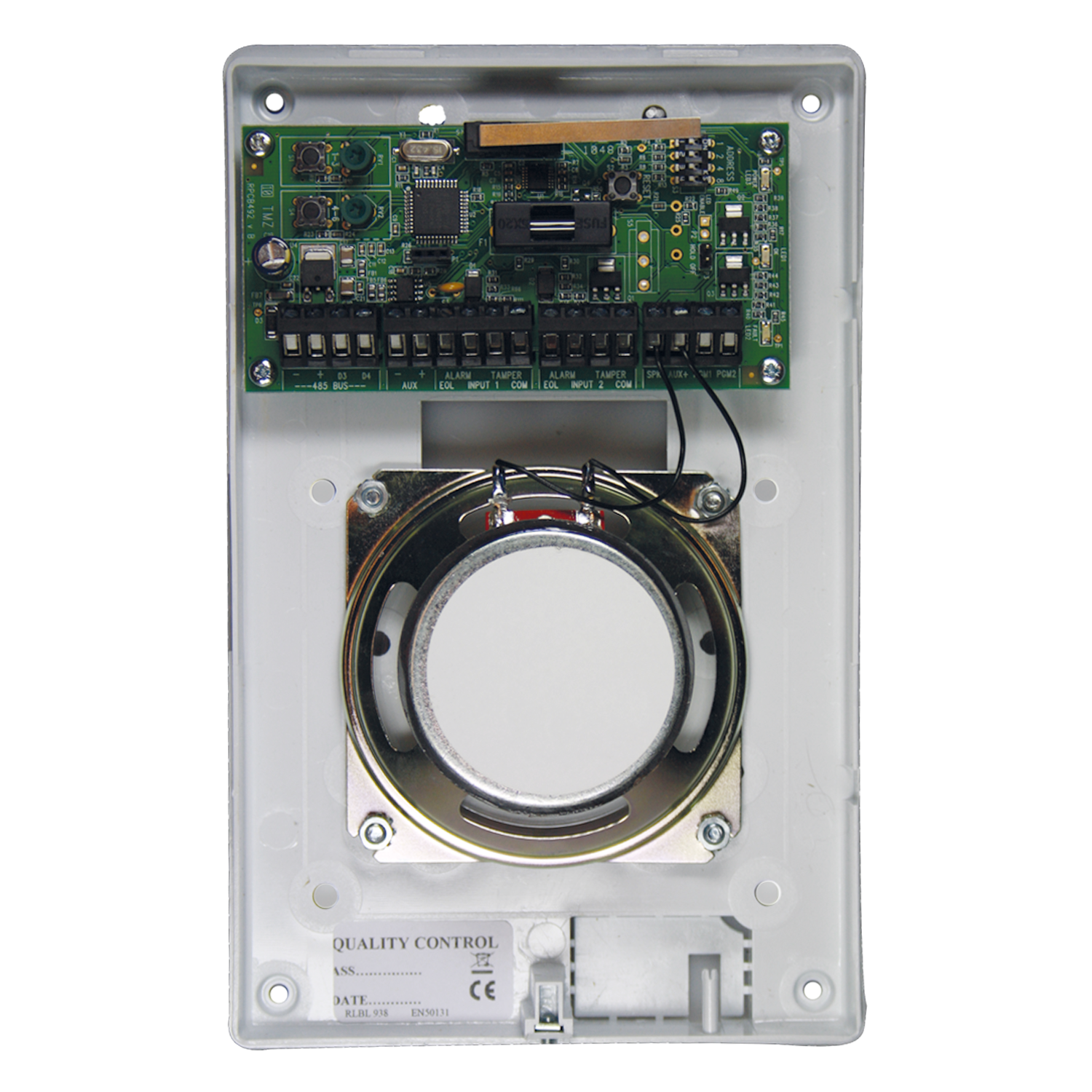

EURO ZEM 2P

Product Features
  • 2 End of Line input expansion module

  • In-built speaker

The EURO ZEM 2P is a two End of Line expansion module that also features an in-built speaker.

This is handy for adding two peripherals to the system, as well as mimicking the tones of the control panel. For example, if the control panel is at the front of the property, you can add the EURO ZEM 2P to the rear to provide the same audible warnings as the panel. This can also be used for entry and exit tones as well as the alarm itself, should it be activated.

EN50131-1:2006+A1:2009 | EN50131-3:2009 | EN50131-6:2008 | PD6662:2010



Environmental and operating features

Storage temperature

-10C to +40C

Certified operating temperature

-10C to +40C

Nominal operating temperature

-10C to +40C

Physical dimensions (H x W x D)

115 x 55 x 17 mm

Weight

565g

Electrical & battery

Operating voltage

10.5V to 15V DC

Quiescent current consumption

40mA

Certifications and warranty

Security Grade

Grade 2

Environmental class

II

EN Certificate

EN50131-3:2009 | PD6662:2010

Certification type

Self Certified

Electrical conformity

CE

Warranty

2 Years
