EURO ZEM8+

Product Features
  • RS485 Repeater for extending data bus range

  • 8 Double Pole or Double EoL Zone Expander

  • 4 Transistor outputs available

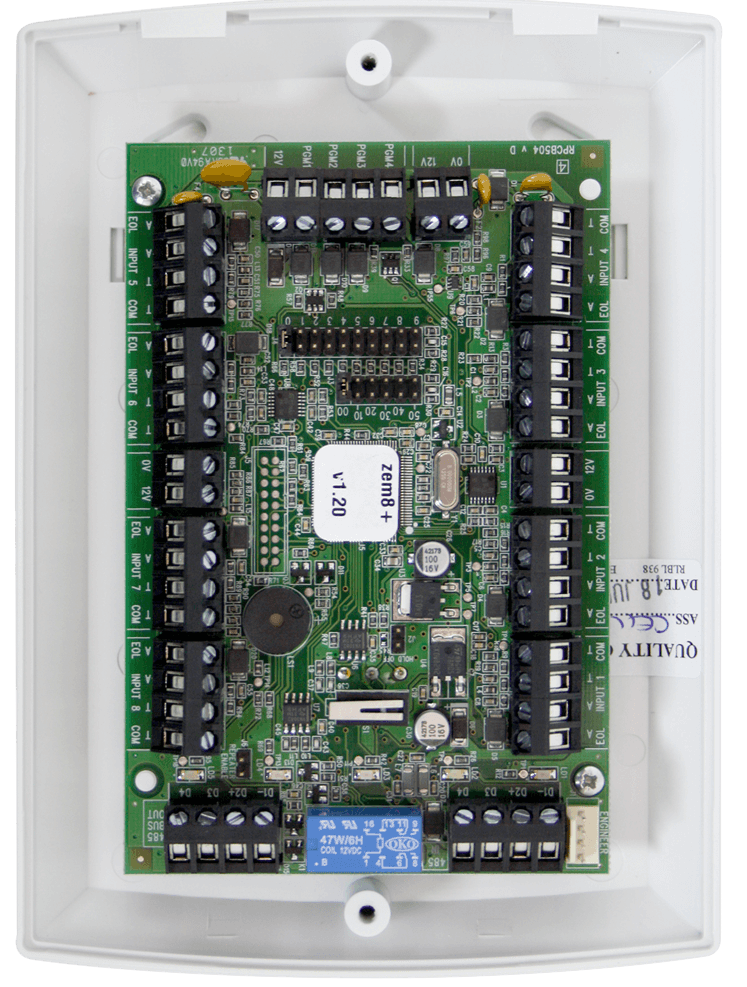

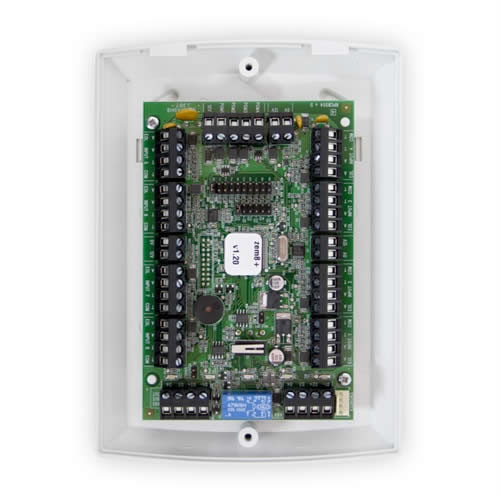

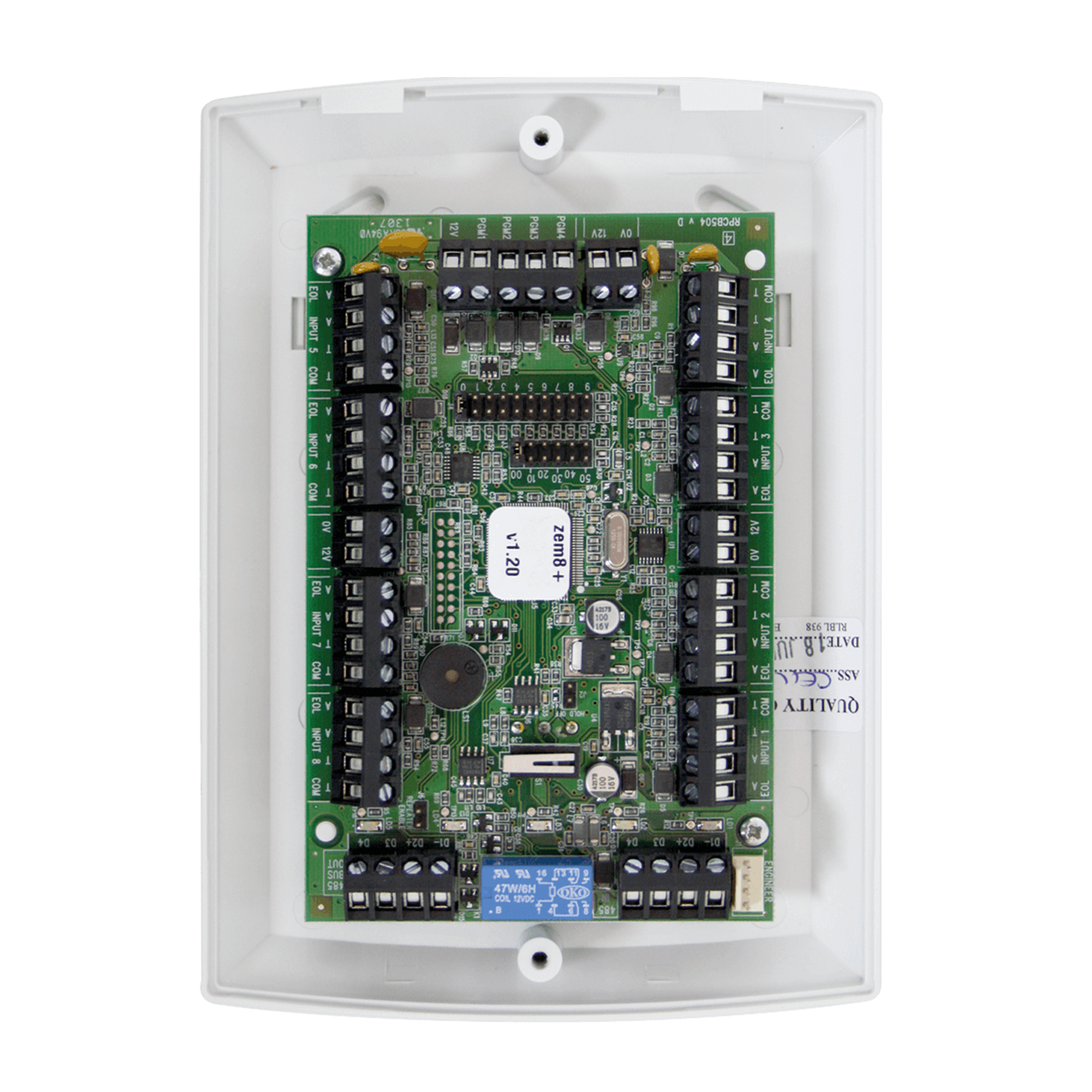

Zone expansion module

PCX-RIX8+ or EURO-ZEM8+ allows you to add an additional 8 inputs and 4 outputs to your wired or hybrid system. The polycarbonate case comes with tamper protection.

RS485 Repeater

Extend the data bus range to add additional detectors to parts of the building.

8 Double Pole or Double EoL Zone Expander

4 Transistor outputs available

EN 50131–1:2006+A1:2009 | EN 50131–3:2009 | EN50131–6:2008 | PD6662:2010



Input and output expanders technical characteristics

Plastic housing

Yes

Tamper protection

Case tamper

Integrated RS485 repeater for extending data bus range

Yes

Inputs & outputs

Wired EOL inputs

8

Wired double pole inputs

8

Total inputs

8

Outputs on board

4

Environmental and operating features

Certified operating temperature

-10C to +40C

Nominal operating temperature

-10C to +40C

Physical dimensions (H x W x D)

173 x 126 x 31mm | PCB 112 x 64 x 17mm

Weight

260g

Electrical & battery

Operating voltage

10.5V to 15V DC

Quiescent current consumption

40mA

Certifications and warranty

Electrical conformity

CE

EN Certificate

EN50131-1:2006 | PD6662:2010

Certification type

Self-certified

Environmental class

II

Warranty

2 years

Security Grade

Grade 3

Product Codes & Options

EURO ZEM8+
EURO-ZEM8+
