EURO ZEM8+ PSU

Product Features
  • 8 Double Pole or Double EOL Zone Expander + 3EOL

  • 4 Transistor outputs available

  • Integrated 2.5A power supply

  • Integrated RS485 repeater for extending data bus range

  • Complies with EN50131-1

Expand your systems potential

The EURO-ZEM8+PSU allows you to expand the security system with an additional 8 inputs and runs off its own intelligent power unit. Whatever the need or requirement, add 8 wired devices to the EURO control panels to seamlessly adapt the system to suit.

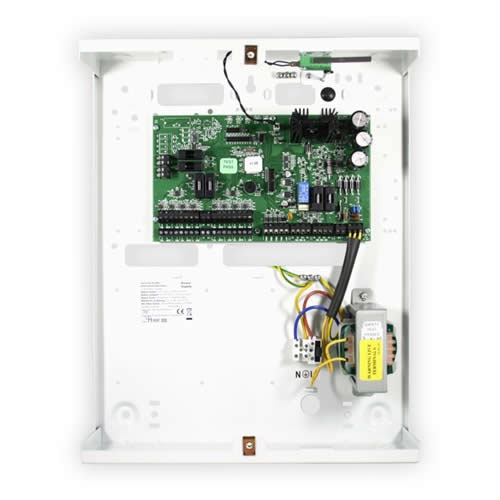

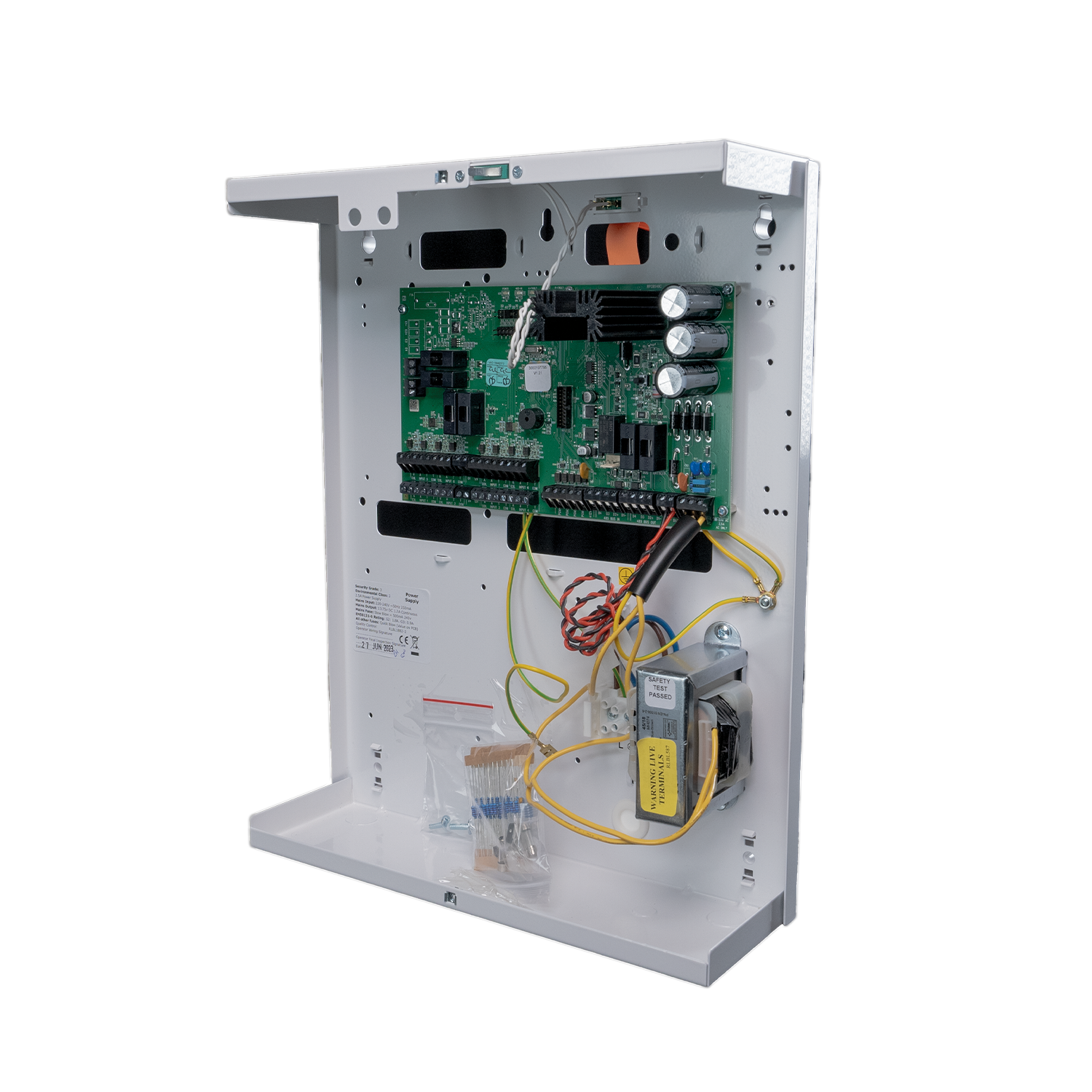

Robust metal housing

The unit comes in a metal case with front and rear tamper for added peace of mind that the system is secure.

EOL wiring

The EURO-ZEM8+PSU’s Double Pole or Double EoL (End of Line) Zone Expander accepts wiring for each of the 8 inputs. ALSO SUPPORTS 3EOL.

Resistor values

For Double Pole wiring you will need to set the control panel in 4K7/2K2 mode (4K7 resistor for alarm and 2K2 resistor for tamper).

EN 50131–1:2006+A1:2009 | EN 50131–3:2009 | EN50131–6:2008 | PD6662:2010



Input and output expanders technical characteristics

Metal housing

Yes

Tamper protection

Yes

Integrated RS485 repeater for extending data bus range

Yes

Inputs & outputs

Wired EOL inputs

8

Wired double pole inputs

8

Total inputs

8

Outputs on board

4

Environmental and operating features

Certified operating temperature

-10 to +40oC

Nominal operating temperature

-10 to +40oC

Physical dimensions (H x W x D)

390mm x 310mm x 80mm

Weight

1062g

Electrical & battery

Intergrated power supply

2A

Battery capacity

700mA (8A to 17A)

Battery supply protection

Reverse polarity protected

Battery low voltage protection

10.5v low voltage cut off

Internal battery charger

800mA Continuous, 13.68V nominal (fold-back current limited)

Recharge time

<24 hours

Mains supply

230v (220-240v) AC Max 250mA

Operating voltage

11-15v DC

Current limit

400mA

Certifications and warranty

Security Grade

Grade 3

Environmental class

II

EN Certificate

EN50131-3:2009 | EN50131-1:2006+A1:2009 | PD6662:2010

Certification type

PCX: IMQ EURO: Self-certified

Certificate number

CA12.01431

Electrical conformity

CE

Warranty

2 years

Product Codes & Options

EURO ZEM8+PSU Input Expansion Module with PSU
FPEURO-ZEM8+PSU
