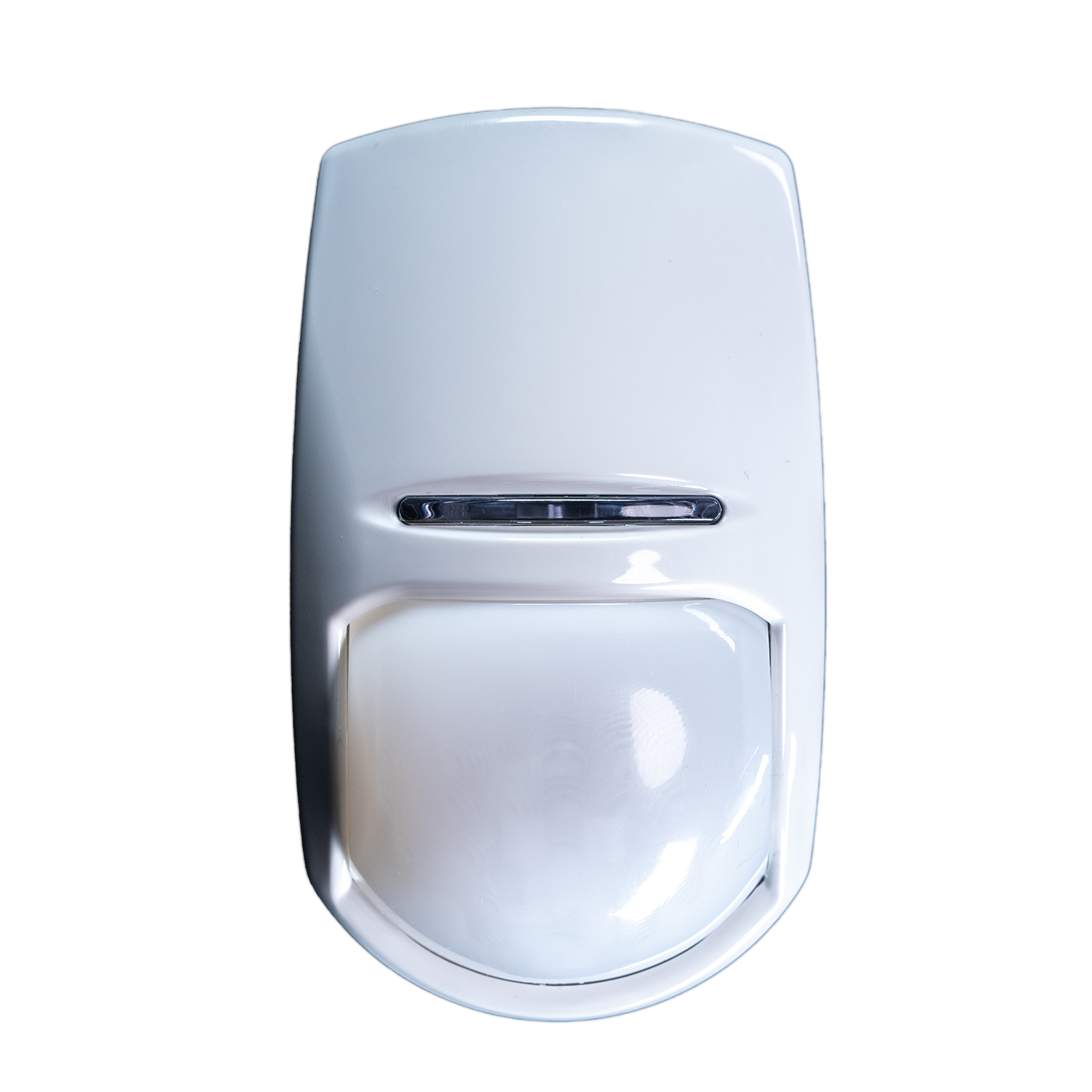

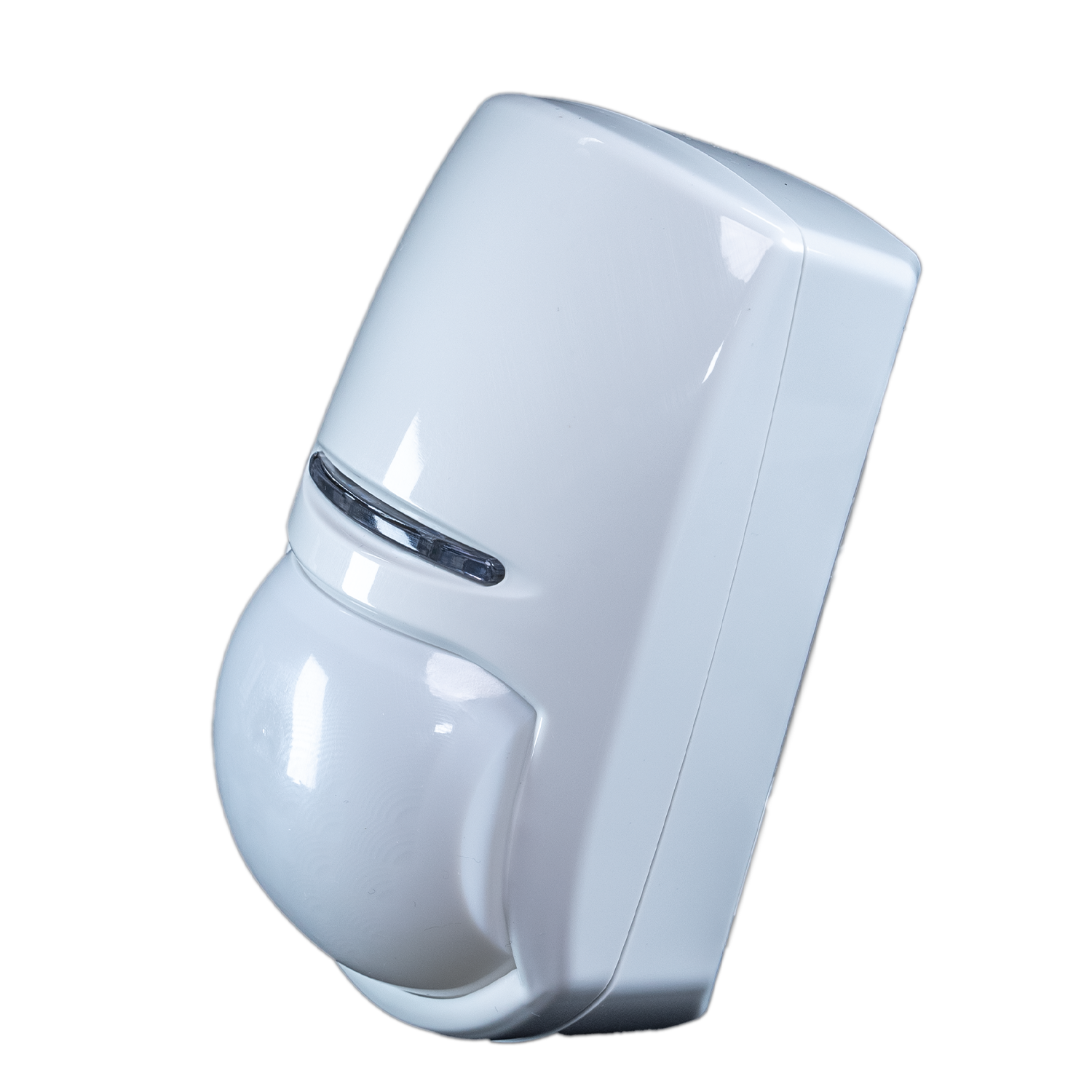

KX15ED

Description

The KX15ED serves as an introductory level detector within the KX line-up. Despite its entry-level status, it offers adjustable sensitivity settings and temperature compensation, ensuring reliable performance. With 15m volumetric detection coverage, it's suitable for safeguarding rooms, offices, and similar spaces.

Key Features
  • 15m volumetric detection coverage
  • Patented Independent Floating Thresholds (IFT)
  • Tamper proof brackets included

Product Features

An entry level detector

The KX15ED is the entry level detector in the KX range. With the ability to adjust the sensitivity settings and temperature compensation you will still get great performance.

Volumetric detection

With 15m Volumetric detection coverage it is deal for protection of rooms, offices etc.

Selectable EOL resistors

The detectors incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market.

Patented Independent Floating Thresholds (IFT)

This technology patented by Pyronix allows the detector to respond to the environmental changes by automatically adjusting its levels of immunity to background disturbances.

Adjustable sensitivity settings

Adjustable sensitivity settings for installations in a any environment. (High/Low).

Automatic temperature compensation.

When the product is used in a hot environment this technology automatically adjusts the detector’s sensitivity allowing it to maintain its range even when the background room temperature is almost equal to the external body temperature of 32c.

EN50131-2-4:2008, EN50131-1, PD6662:2017



Detectors technical characteristics

Set sensitivity

High or Low

DEOL resistor on board

Yes

Tamper protection

Front and rear

Standard temperature compensation

Yes

Detectors technical characteristics

Maximum range

15m

Volumetric coverage

Yes

Detection speed

0.3 - 3.0 m/s

Coverage angle

85 degree

Detection zones

60

Detection planes

7

Protection of area under the detector (creep zone)

Yes

White light filter

6500 Lux

Protection

Ultraviolet light filter

Lens

3 dimensional

Optics

Sealed optics

Detection method

Low noise dual element pyroelectric sensor

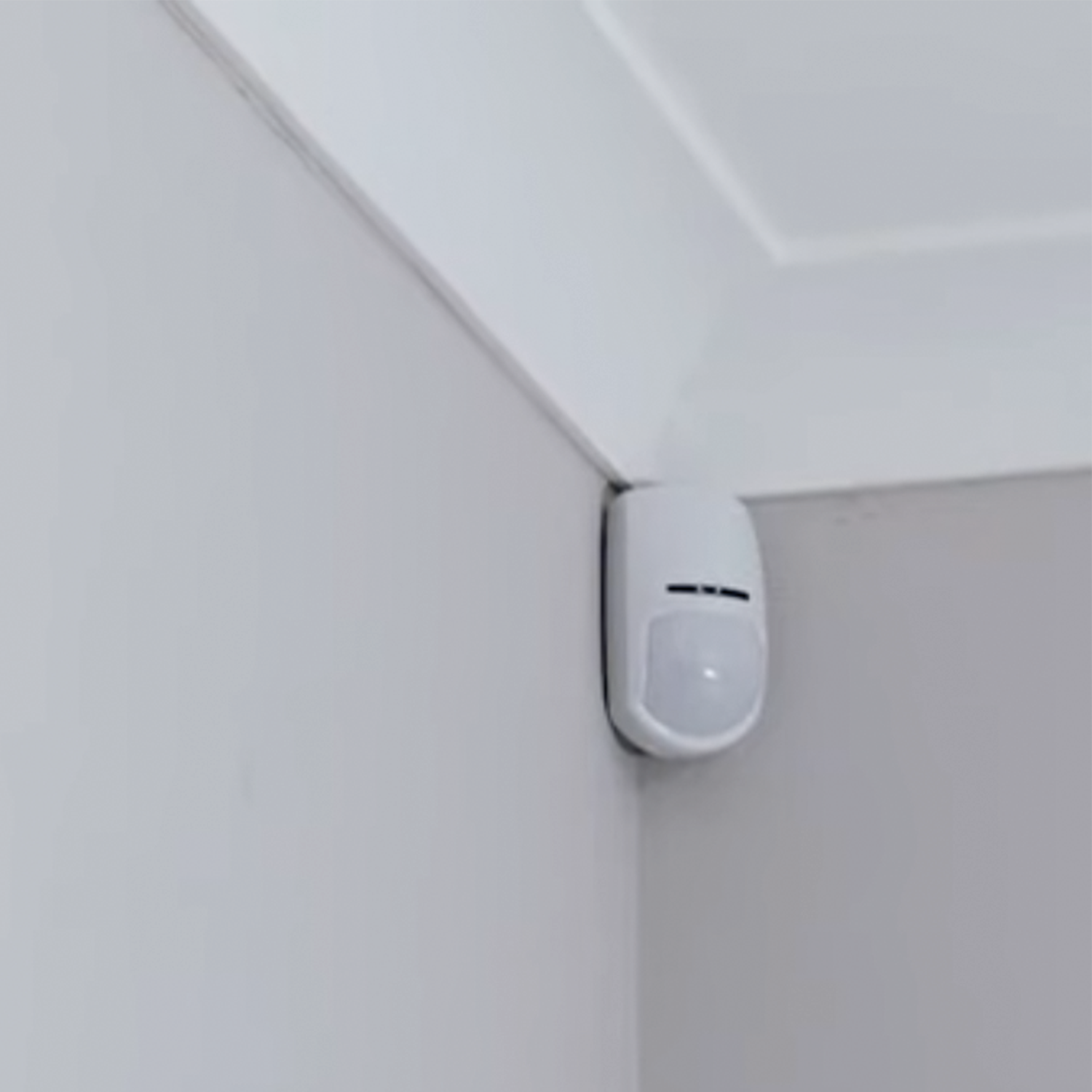

Mounting

Wall mounted

Bracket included

Ceiling mounted

Bracket included

Optimum coverage height

1.8 - 2.4m

Certified mounting height

2.4m

Environmental and operating features

Storage temperature

-40C to +80C

Certified operating temperature

-10C to +40C

Nominal operating temperature

-30C to 70C

Physical dimensions (H x W x D)

117 x 69 x 50mm

Weight

125g without bracket

Electrical & battery

Operating voltage

9-16V DC 13.8V DC typical

Quiescent current consumption

13mA @ 12V (Min), 16mA @ 12V (Max)

Contact Resistance

<10 ohms

Relay outputs

50mA 60 VDC, 42 VAC (RMS)

Tamper switch

12V 50mA

Certifications and warranty

Security Grade

Grade 2

Environmental class

II

EN Certificate

EN50131-2-2:2008, EN51031, PD6662:2017

Certification type

Self-Certified

Certificate number

N/A

Electrical conformity

CE

Warranty

5 years

Product Codes & Options

KX15ED PIR Detector
FPKX15EDHT
SAP: 361301090
