Enforcer V10
Product Features
-
Enforcer all in one two-way wireless panel with DIGI-WIFI communicator
-
Maximum total zones 66
- 32 wireless zones expandable to 64
- 2 wired zones expandable to 34 -
3 Programmable wired outputs expandable to 38
-
80 User codes, 32 wireless keyfobs with individual user ID
-
In built proximity reader (set/unset with tag)
-
4 Level sets or 4 independent areas (Version 10 only)
-
Wide range of two-way wireless peripherals available
-
Security Grade 2, Environmental Class II
-
Customisable push notifications
-
PyronixCloud is a yearly subscription service*
Keeping you ahead of the curve with DIGI-WIFI included as standard
In the digital age we continue to demand products and services which are more aligned with our lifestyle; products which allow us to stay connected all the time. The Enforcer V10 realises that opportunity by providing IP connectivity through the inbuilt WIFI modem and ProControl+ app available on iOS and Android devices.
Complete control from anywhere in the world
Set and unset the system, get system status and receive custom push notifications from any event.
HD monitoring
Add IP cameras to the system for live stream monitoring of the property.
Android & Apple compatible
The ProControl+ App is available in two versions: on Android™ from the Google Play Store, and on iOS™ from the Apple App store.
No on-site IT configuration
The Enforcer V10 is connected through a cloud server, so there is no need to set up static IP addresses or configure the network connection on site, instead you simply set up an account on PyronixCloud.com.
Recurring revenue & retention
Streams of recurring revenue can be established by offering PyronixCloud management services; managing this or passing access to users. This increases customer retention and makes the system more profitable
*Please Note: The PyronixCloud platform is a yearly subscription service and charges do apply. For more information please contact your installer or your dedicated account manager.
Get to know one & master them all, with fully menu driven programming
Easily navigate through the menus of the Enforcer V10 with the same uniformed menu-driven programming. Simple ‘YES/NO’ questions allow fast and efficient installing to save both time and money.
Arming Devices
Communication Devices
Detectors & Sensors
Sounders & Bells
Software & Services
Control Panels
Control panel technical characteristics
Two-way wireless technology |
Yes |
Independent areas |
4 |
Part sets |
4 |
Tamper protection |
Front and rear |
LCD keypad with integrated proxmity reader |
Yes |
User codes and prox tags |
80 |
Guard codes |
20 |
Reporting formats |
DIGI-WIFI / DIGI-LAN: Contact ID IP, Fast Format IP, SIA IP, Push Notifications. | DIGI-GPRS / DIGI-GPRS+SIM: Contact ID IP, SIA IP, Push Notifications and SMS. | DIGI-1200 / DIGI-GSM: Contact ID, Fast Format, SIA and SMS. |
System logs |
750 |
Enforcer two-way wireless technology
Signal Strength Indicators (SSI) |
Yes |
Instant two way device control (ITDC) |
Yes |
Pyronix high security two way wireless data encryption protocol (TDE) |
Yes |
Pyronix intelligent jamming detection |
Yes |
Programmable wireless supervision time |
Yes |
868MHz transceiver FM technology |
Yes |
One push to learn |
Yes |
Tranmission method |
Fully encrypted rolling code | (4294967295 combinations) |
Transmission range |
300m in open space |
Inputs & outputs
Input type |
Wireless and Wired |
Channels |
2 |
Two-way wireless inputs |
64 (maximum with additional wireless expander) |
Onboard wired inputs |
2 (wired to I/O board) |
Wired EOL inputs |
34 (maximum with additional wired expanders) |
Wired double pole inputs |
32 (must use EOL mode 4k7/2k2 and wired expanders) |
Total inputs |
66 |
Outputs on board |
3 (PGM1, STRB, BELL) |
Two-Way Wireless Keypads |
4 |
Output modules |
1 |
Maximum outputs |
38 |
Two-way wireless keyfobs |
32 |
Two-way wireless sirens |
2 |
Wired keypads |
4 (Including the Enforcer control panel) |
Readers and entry control |
3 |
Input expansion layout
Onboard |
1 - 34 |
ZEM 0 |
35 - 42 |
ZEM 1 |
43 - 50 |
ZEM 2 |
51 - 58 |
ZEM 3 |
59 - 66 |
Communications and modems
Modem type (included) |
DIGI-WIFI |
GPRS modem (optional) |
Yes |
GSM modem (optional) |
Yes |
PSTN modem (optional) |
Yes |
LAN modem (optional) |
Yes |
Supports PyronixCloud & ProControl+ App |
Yes |
SMS numbers |
10 |
Event Signalling to Insite |
Yes |
Formats |
Contact ID, Contact ID IP, Fast Format, Fast Format IP, SIA, SIA IP, Push notifications and SMS |
SIA Level 1 |
Yes |
Contact ID |
Yes |
ARC compatibility |
Yes |
Compatible with UDL software |
Yes |
Voice modem / PSTN speech dialler (optional) |
Yes |
Environmental and operating features
Storage temperature |
-20C to +60C |
Certified operating temperature |
-10C to +40C |
Nominal operating temperature |
-10C to +40C |
Alarm period |
15 mins maximum |
Physical dimensions (W x H x D) |
220 x 160 x 50mm |
Weight |
1025g |
Electrical & battery
Battery type |
NiMH 8 cell 2200mAh rechargeable battery |
Battery life |
3 - 5 Years |
Battery capacity |
2200mAh |
Battery voltage |
12.71V (with no mains and battery fully charged) |
Certifications and warranty
Security Grade |
Grade 2 |
Environmental class |
II |
EN Certificate |
EN50131-1:2006+A1:2009 | EN50131-3:2009 | EN50131-6:2008 | EN50131-5-3:2005+A1:2008 | PD6662:2017 |
Certification type |
IMQ |
Certificate number |
CA12.01328 |
Electrical conformity |
CE |
Warranty |
2 years |
Product Codes & Options
Enforcer V10
ENF32UK-WE
SAP: 361301170

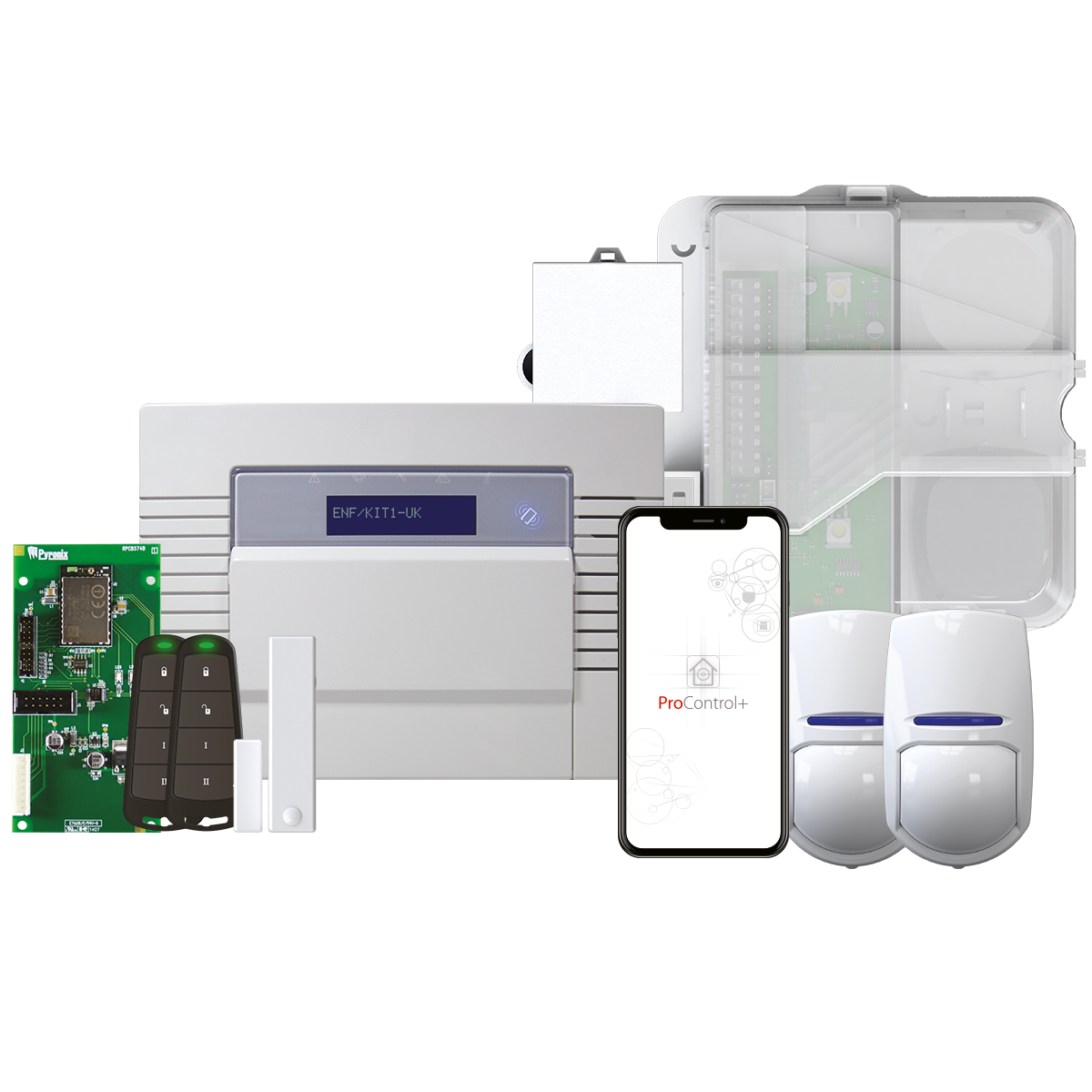

Enforcer Kit 1
ENF/KIT1-UK
SAP: 361300205

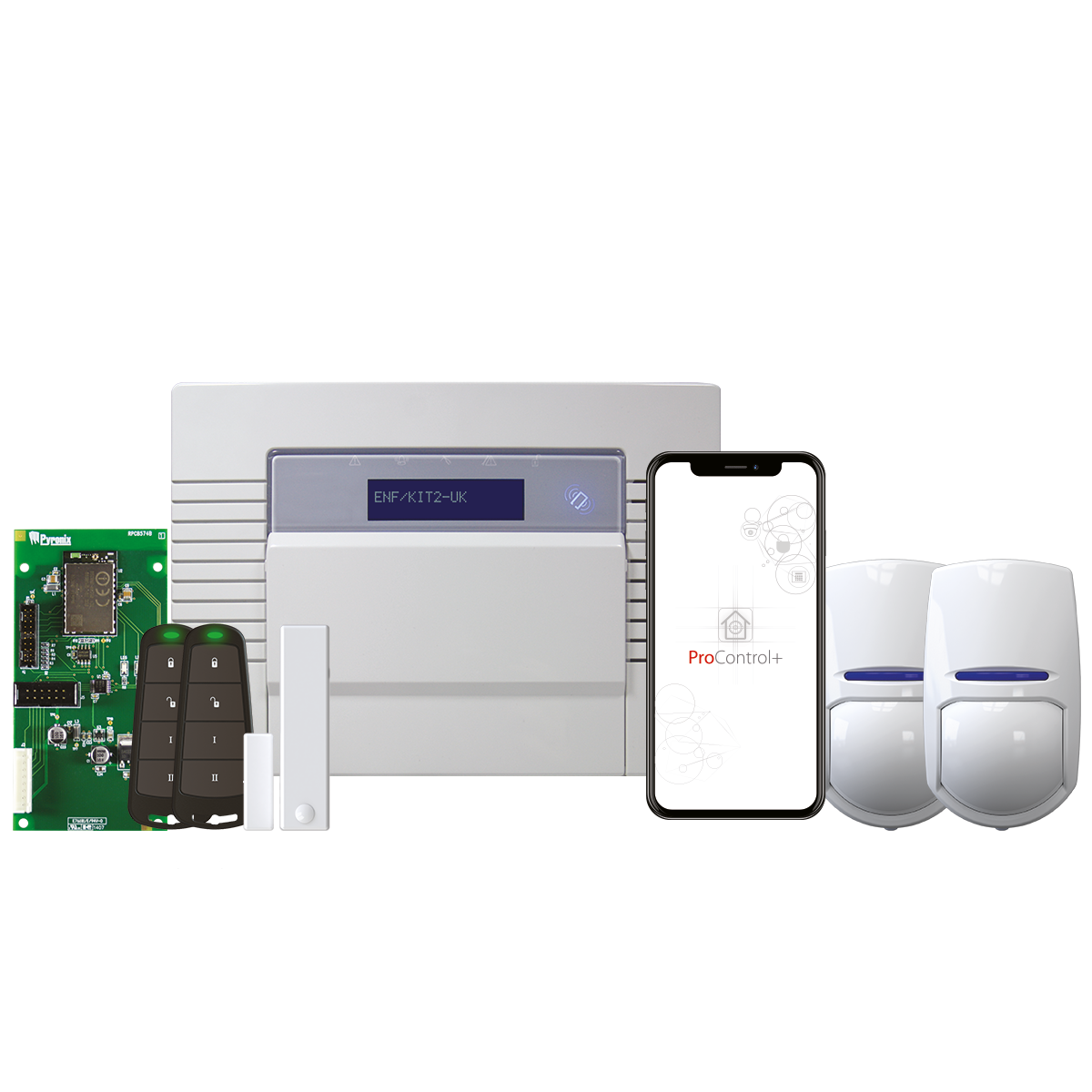

Enforcer Kit 2
ENF/KIT2-UK
SAP: 361300189

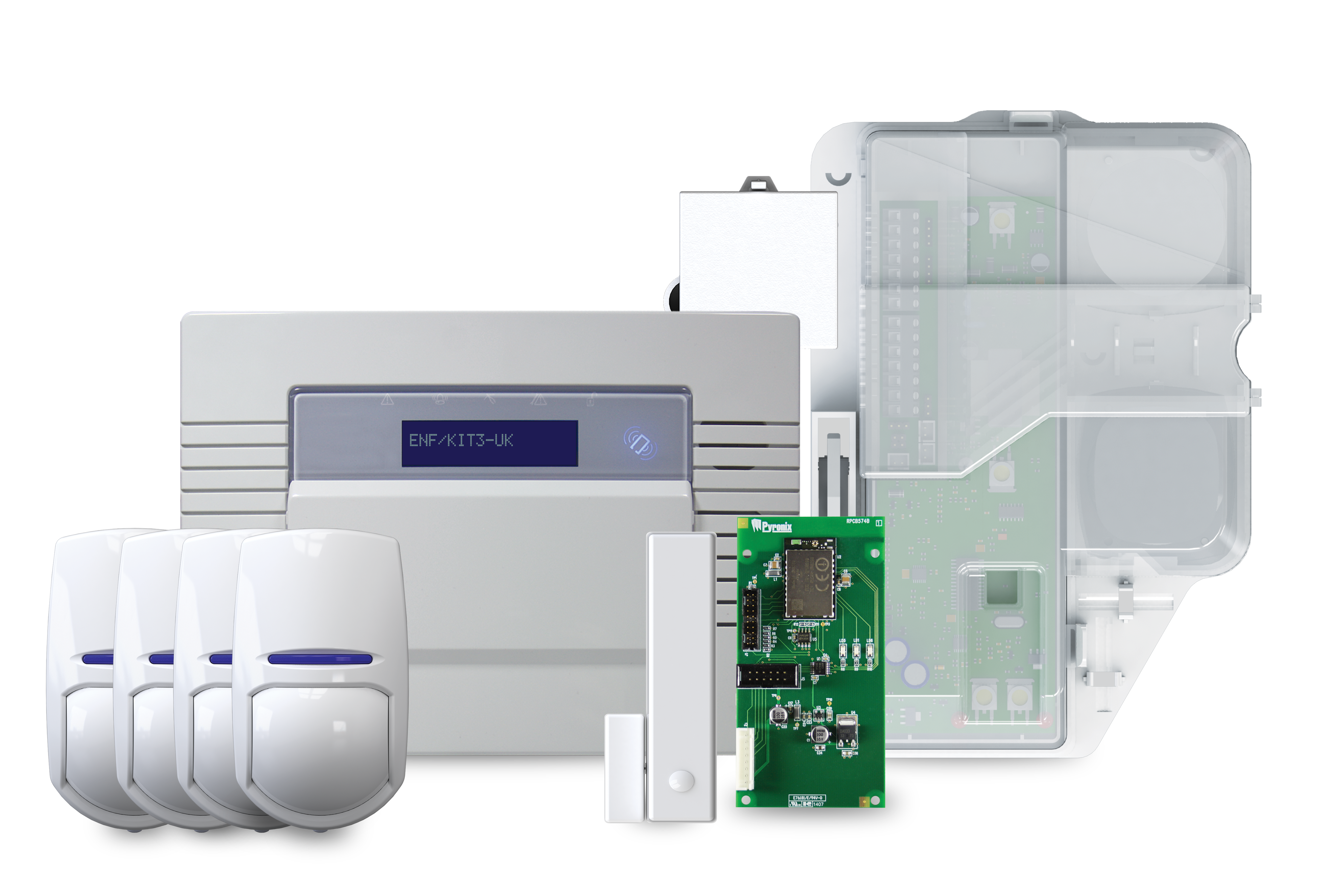

Enforcer Kit 3
ENF/KIT3-UK
SAP: 361300188

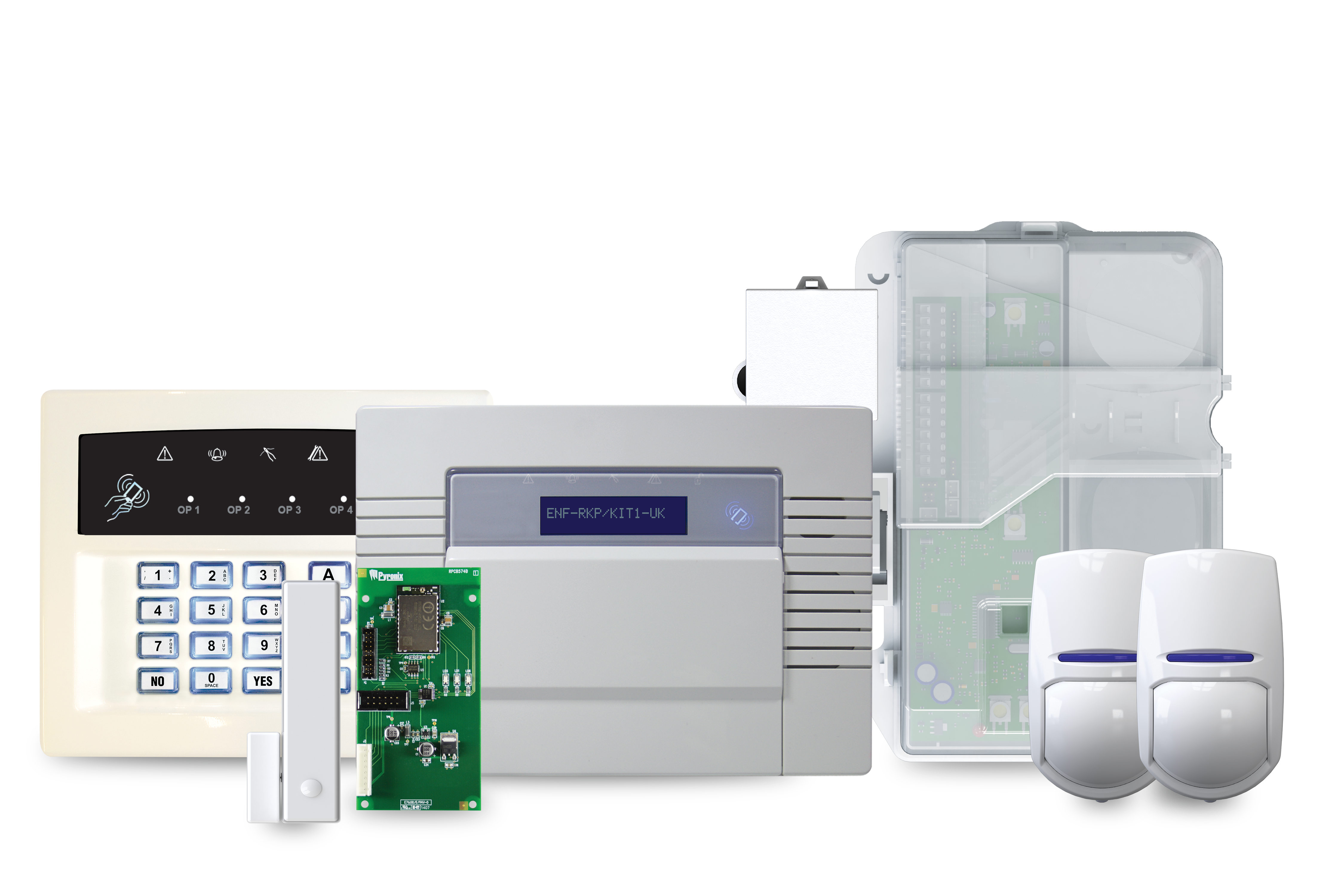

Enforcer Arming Station Kit 1
ENF-RKP/KIT1-UK
SAP: 361301171

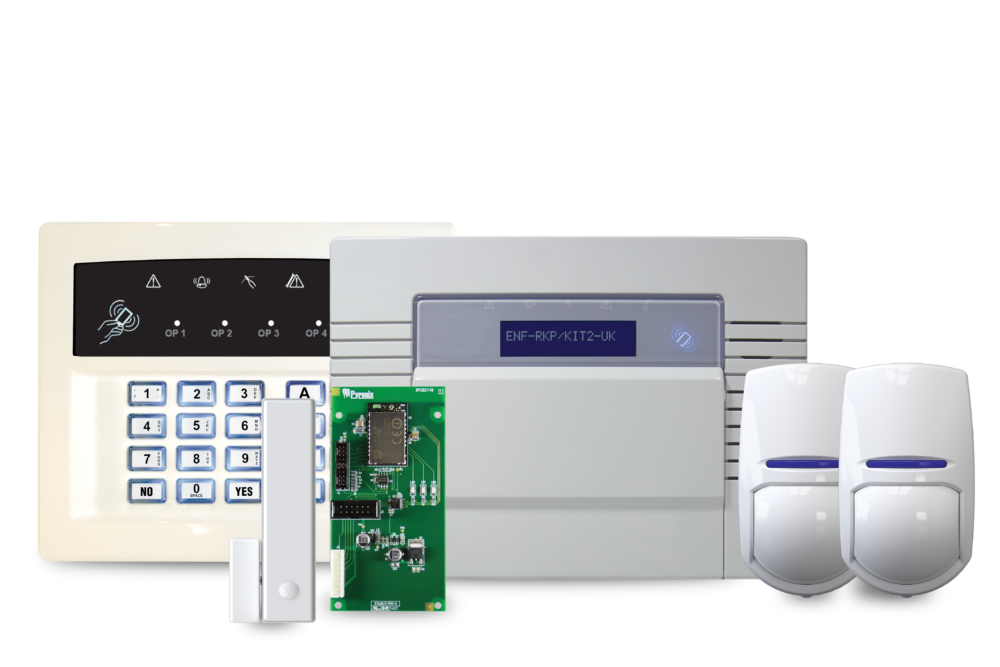

Enforcer Arming Station Kit 2
ENF-RKP/KIT2-UK
SAP: 361301172
