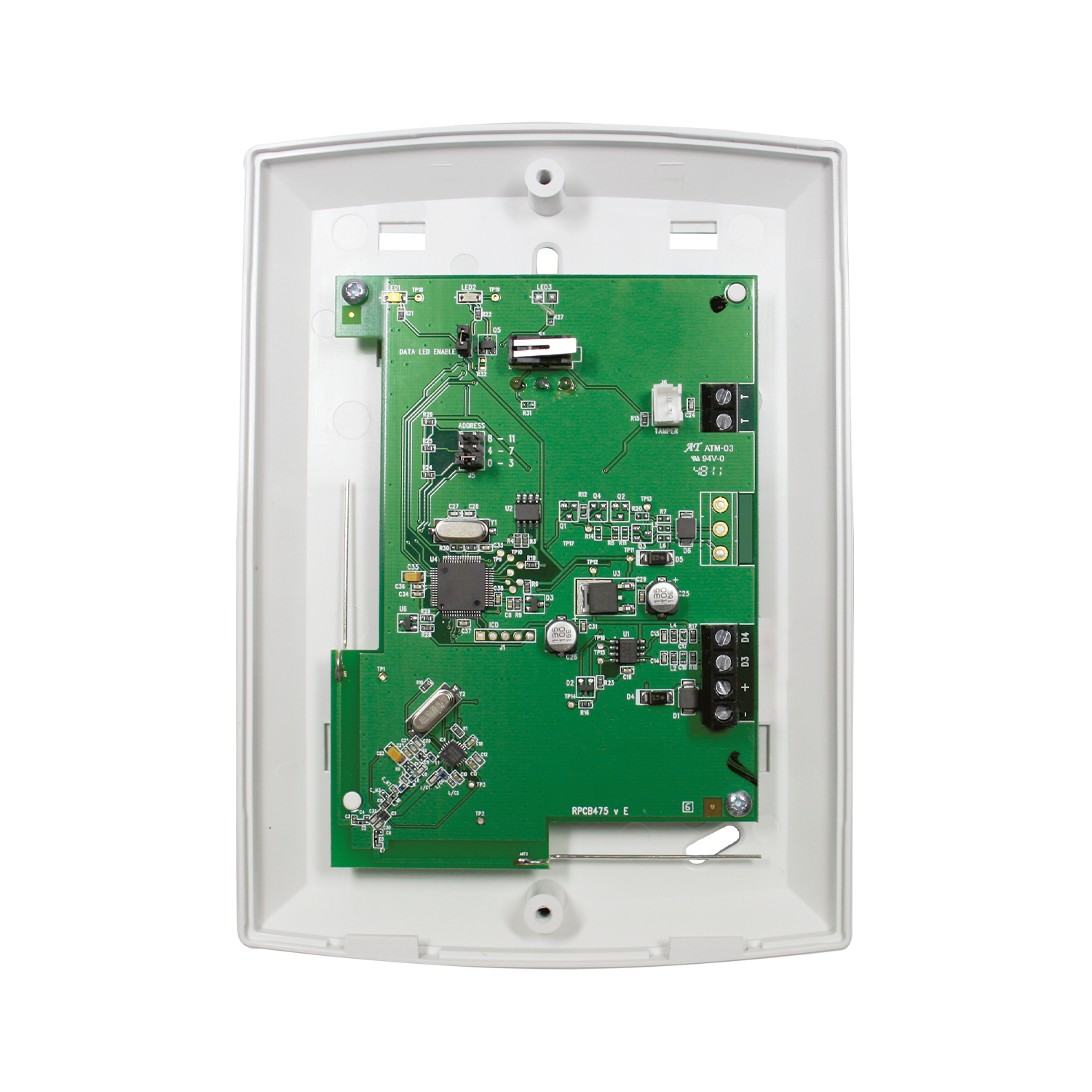

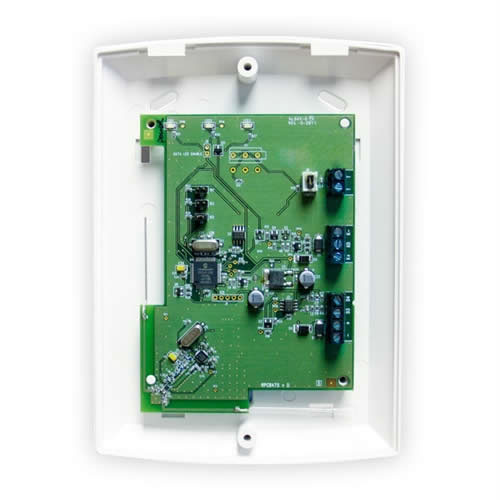

EURO ZEM32-WE

Product Features
  • Expand Pyronix hybrid panels

  • 32 x wireless inputs

  • 32 x wireless keyfobs

  • 2 x DELTABELL-WE

  • Instant two way device control (ITDC)

  • Pyronix High Security Wireless Encryption Protocol

  • 868MHz Transceiver FM technology

  • Complies with EN50131-1

Expand your system's potential

Expand your Pyronix hybrid control panels with the Enforcer two-way wireless security devices, giving you flexibility in your installations.

Instant two-way Device Control (ITDC)

The ITDC technology enables instant wake-up and instant sleep of each device on the system, allowing continuous communication between the control panel and wireless devices while preserving battery power. This technology not only provides installers with total control of each device, but also gives users peace of mind that they have a reliable and secure wireless system.

Ensuring that all wireless detection devices know when the system is armed and disarmed.
Ensuring that they are awake as soon as the system is armed.

Two-way wireless technology

Each wireless device on the Enforcer system, including movement detectors is a transmitter and a receiver. The wireless technology used on the Enforcer system holds a significant advantage over one-way and some two-way wireless products currently available on the market.

Signal Strength Indicator (SSI)

One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

Pyronix High Security Wireless Protocol Encryption

The two-way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components is protected on a very high security level. The protocol uses the 128 bit Pyronix advanced encryption.

EN 50131–1:2006+A1:2009 | EN 50131–3:2009 | EN50131–6:2008 | PD6662:2010



Input and output expanders technical characteristics

Plastic housing

Yes

Tamper protection

Front and rear

Enforcer two-way wireless technology

Instant two way device control (ITDC)

Yes

Pyronix high security two way wireless data encryption protocol (TDE)

Yes

Pyronix intelligent jamming detection

Yes

Programmable wireless supervision time

Yes

868MHz transceiver FM technology

Yes

Tranmission method

Fully encrypted rolling code

Transmission range

1.6 km in open space

Inputs & outputs

Two-way wireless inputs

32

Two-way wireless keyfobs

32

Two-way wireless sirens

2

Environmental and operating features

Storage temperature

-40C to +80C

Certified operating temperature

-10C to +50C

Nominal operating temperature

-10 to +50C

Physical dimensions (H x W x D)

173 x 125 x 32mm

Electrical & battery

Operating voltage

9V 15V

Quiescent current consumption

60mA

Certifications and warranty

Security Grade

Grade 2

Environmental class

II

EN Certificate

EN50131-1:2006+A1:2009 | EN50131-3:2009 | EN50131-6:2008 | EN50131-5-3:2005+A1:2008

Certification type

IMQ

Certificate number

CA12.01439

Electrical conformity

CE

Warranty

2 years

Product Codes & Options

EURO-ZEM32-WE Wireless Expander
EURO-ZEM32-WE
SAP: 361301001

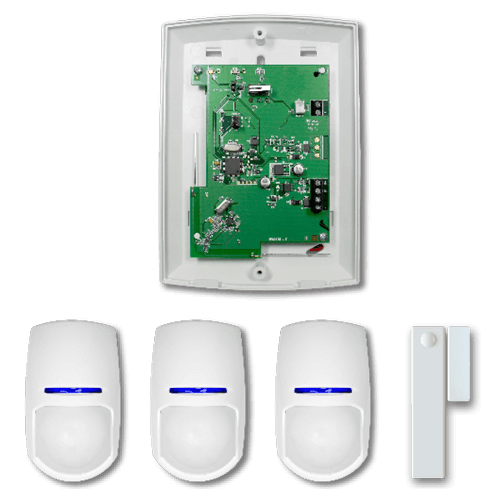

EURO Hybrid Kit 1
EUROENF/KIT1
SAP: 361301001
EURO Hybrid Kit 2
EUROENF/KIT2
SAP: 361300992
